Triumph Trophy TR7P 750cc Saint

Bikes > Triumph List
The Triumph TR7p 750cc Saint / Bonneville
The 650cc TR6P Saint has grown-up to become the 750cc TR7p, with 1973 being the change-over year.
In the process it's gained an increase in cubic capacity, a larger fuel tank, a new oil-in frame for both madels from 1971, front disc brake, conical hubs and a host of cosmetic changes and re-worked electrics.
1981 was the final year of production for the Tiger TR7, by which time the police versions of the Trophy and Bonneville were virtually identical, but the Bonneville had twin carbs and continued until closure in 1983. At one point, Triumph had intended to export the Saint to the USA as the new Bonneville.
After the factory closure, the firm of L F Harris took over production in Devon, using exsisting and new parts from Germany and Italy. The resultant machine was known as the 'Harris Bonneville' and many seem to have been in police spec.

According to Wikipedia:
In 1984 the T140 production rights were licensed by the new owner of Triumph, John Bloor, to Devon-based engineer Les Harris who produced 1,300 complete motorcycles at his Newton Abbot factory between 1985 and 1988 when the licence was not renewed .
These machines were distinct from the Meriden product having as standard, German Magura switchgear, Merit spark plug caps with Italian Paioli front and rear suspension, Brembo brakes and Lafranconi silencers.
ENGINE: 744 cc (76 x 82mm) over-head valve parallel twin.
Compression ratio, 8.25 to 1.
Carb 30mm Amal Concentric with mesh-and-fabric air filter.
Claimed maximum power, 49 bhp at 6,200 rpm.
Triplex chain through wet, multiplate clutch to five-speed gear box. Overall ratios: 12.52, 8.91, 6.78, 5.76 and 4.85 to 1.
Final drive by $ x fin chain.
12-volt coil ignition, with auxiliary capacitor circuit.
Two six-volt, 22-amp-hour batteries in series charged by
Lucas RM21 110-watt alternator, through rectifier and diode.
7in-diameter headlamp with 45/40-watt main bulb.
Direction indicators, headlamp flasher, flashing blue lamp,
Rear illuminated Police and Stop panels, hazard-warning circuit,
Alternating-note matched wind-tone horns.
FUEL CAPACITY: Four gallons, including half-gallon reserve.
TYRES: Dunlop TT100, 4.10 x 19in, front and rear.
BRAKES: 10in-diameter, hydraulically-operated disc front.
7in-diameter single-leading-shoe rear.
DIMENSIONS: Wheelbase, 57 in; ground clearance, 6in; seat height, 31 in; all unladen.
WEIGHT: 458 lb, dry.
SPECIAL EQUIPMENT: Single seat, switch console on fork top, certified chronometric speedometer, reinforced low-lift centre stand, quickly-detachable rear wheel, rear carrier with anti-vibration mountings for radio.
To order:
Avonaire fairing, radio handset mountings on tank or inset into tank top face pannier boxes.

Triumph TR7p Saint advert

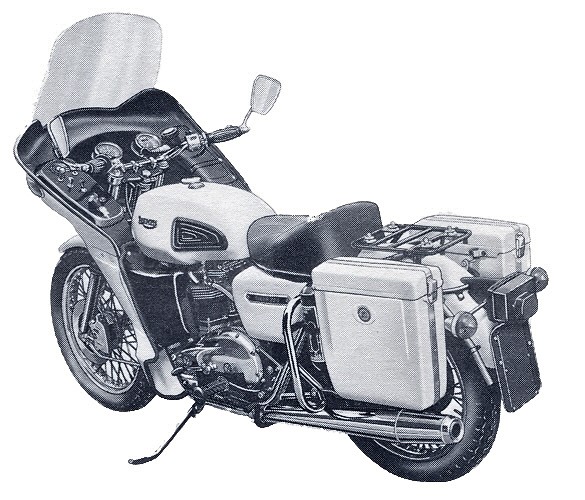

Triumph Tiger 750p police spec

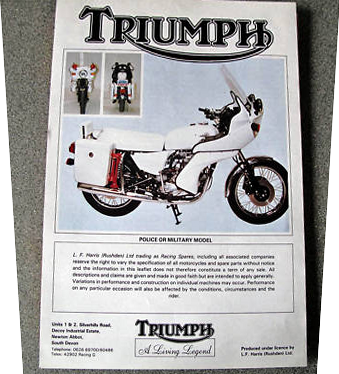

Triumph Harris Bonnie Saint leaflet

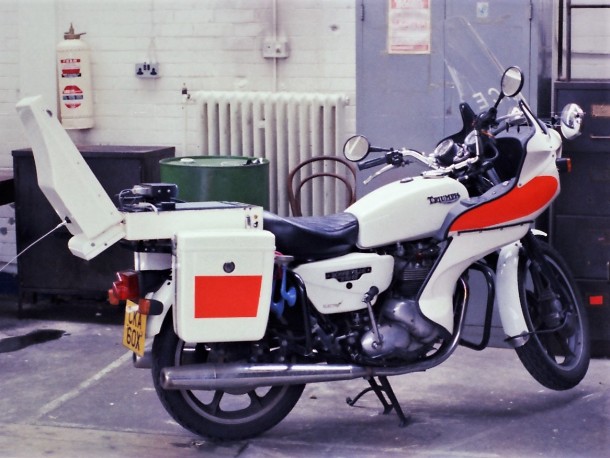

1982 police 750cc Bonneville Merpol
